Rollee Shielded Couplings

For sewer, drain, waste & vent piping

Designed for resistance to heavy earth loads and shear forces, and provides improved pipe alignment.

Couplings offer a .012" stainless steel shield and a molded in bushing.

Technical Specs & Code Approvals

Gasket

• Manufactured to meet the material requirements of:
• CSA B602 - mechanical couplings for drain, waste, vent pipe ans sewer pipe
• ASTM D 5926 - Standard Specification for Poly Vinyl Chloride (PVC) Gaskets for Drain, Waste, and Vent (DWV), Sewer, Sanitary, and Storm Plumbing Systems
• ASTM C 1173 - Standard Specification for Flexible Transition Couplings for Underground Piping Systems
• Hardnesss, Shore "A", Inst. -+5...............65
• Tensile Strength, Min. psi.....................1000
• Elongation at Rupture, Min. %..................250
• Tear Strength, Min.............................150 lb/in.
• Brittleness Temperature.........................-40°F

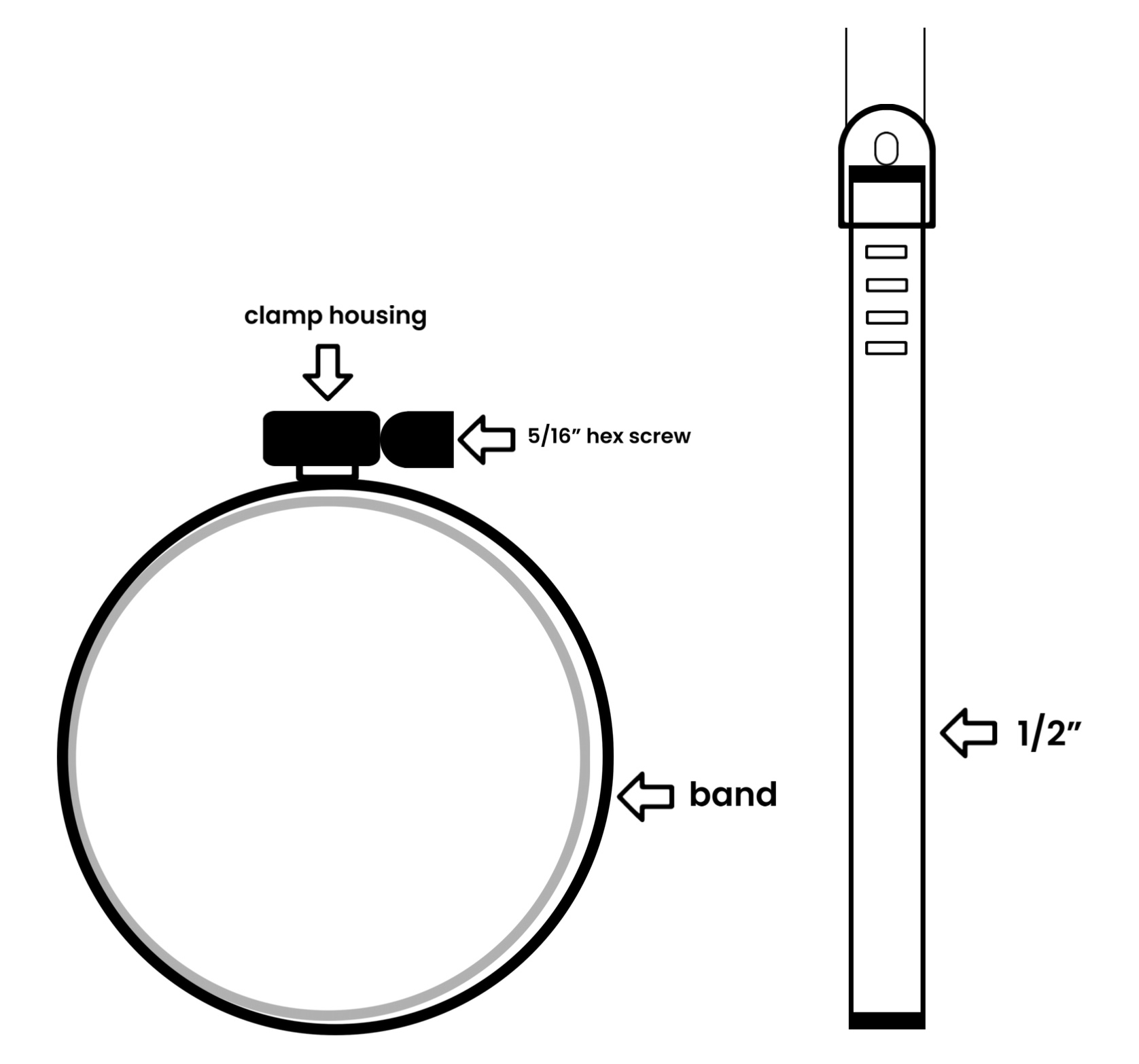

Clamps

• Manufactured to the requirements of CSA B602
• Clamp Housing - 301 Stainless Steel
• Clamp Band - 301 Stainless Steel
• Clamp Screw - 305 Stainless Steel
• Installation Torque 60" lbs

Shear Ring

• .012" Thick, 300 Series Stainless Steel
• Width manufactured according to coupling width (1.50", 2.13", or 4")
• Length manufactured according to coupling diameter
• Clamps spot welded in place

Coupling

• Manufactured to conform to the performance requirements of
• ASTM C 1173 - Standard Specification for Flexible Transition Couplings for Underground Piping Systems
• CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe
• Width manufactured according to coupling width (1.50", 2.13", or 4")
