Swift Couplings
Swift Couplings

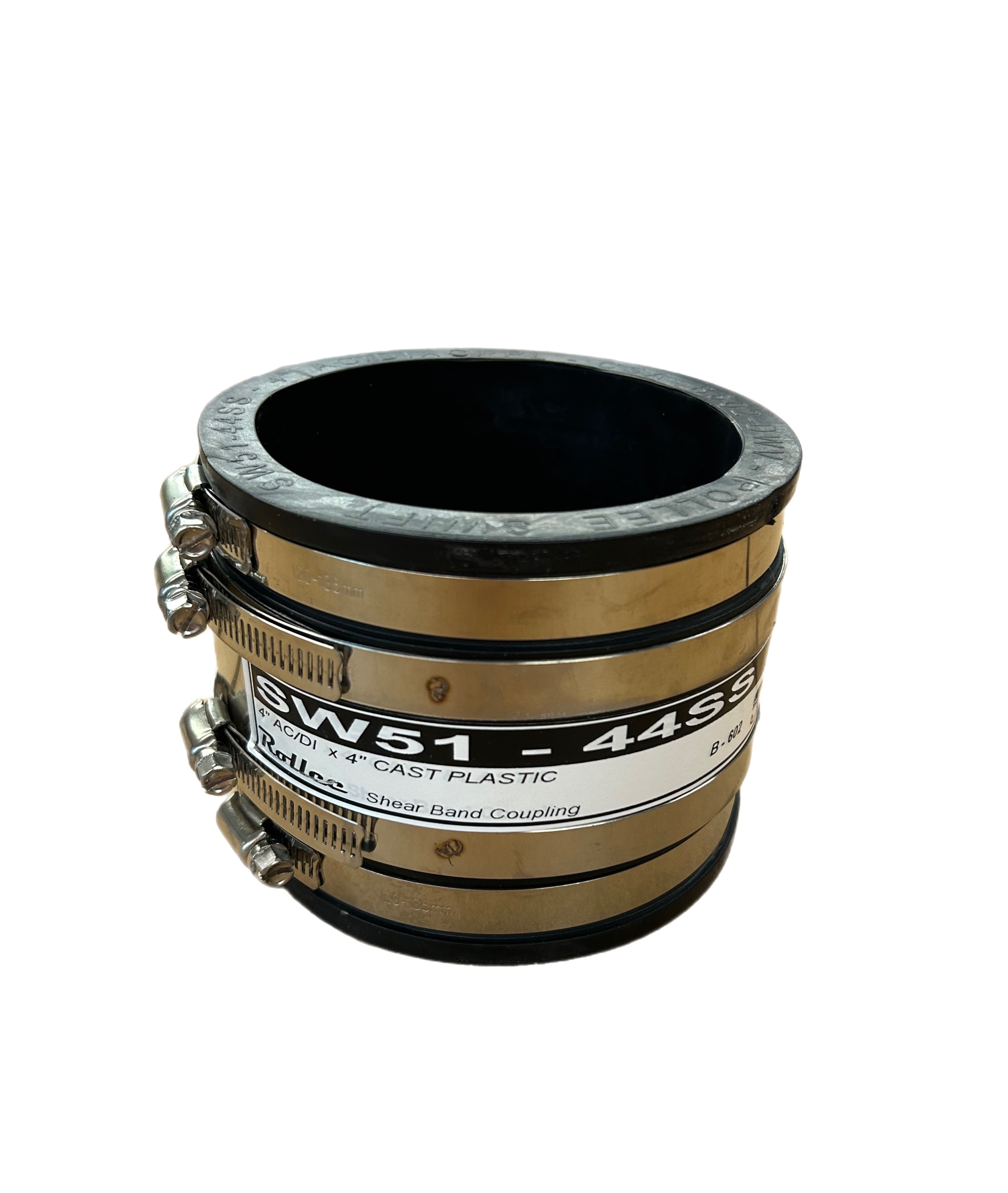

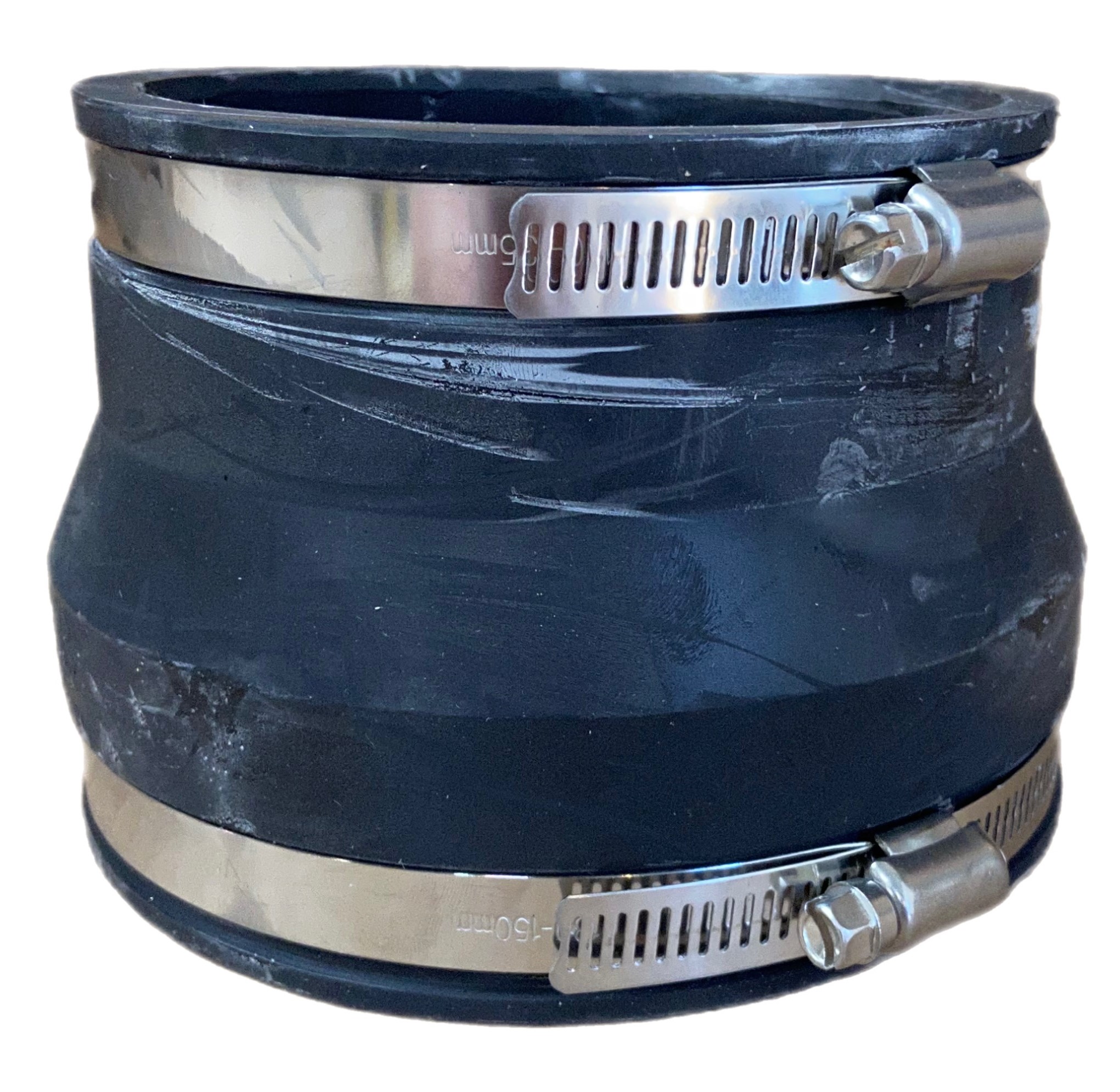

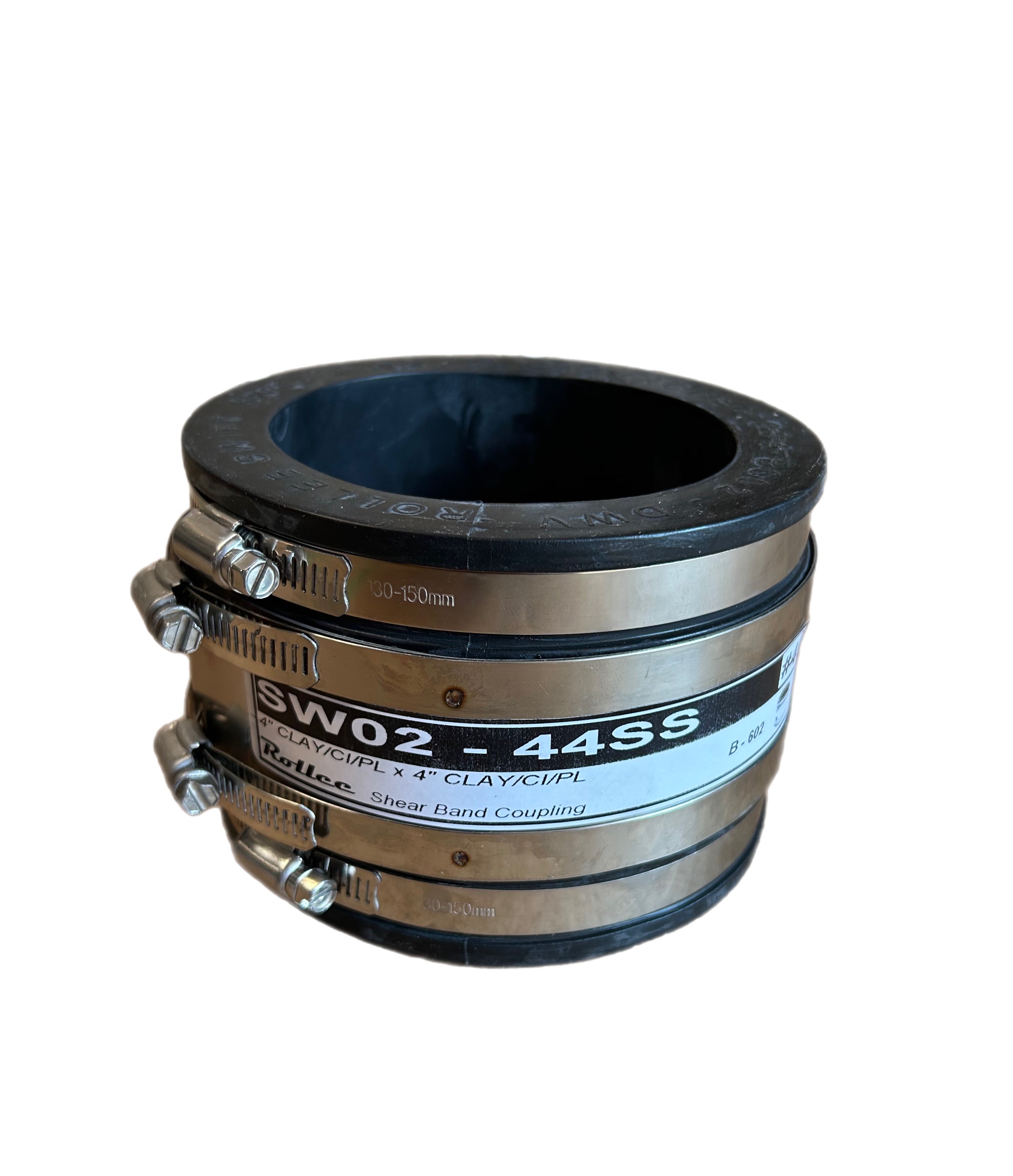

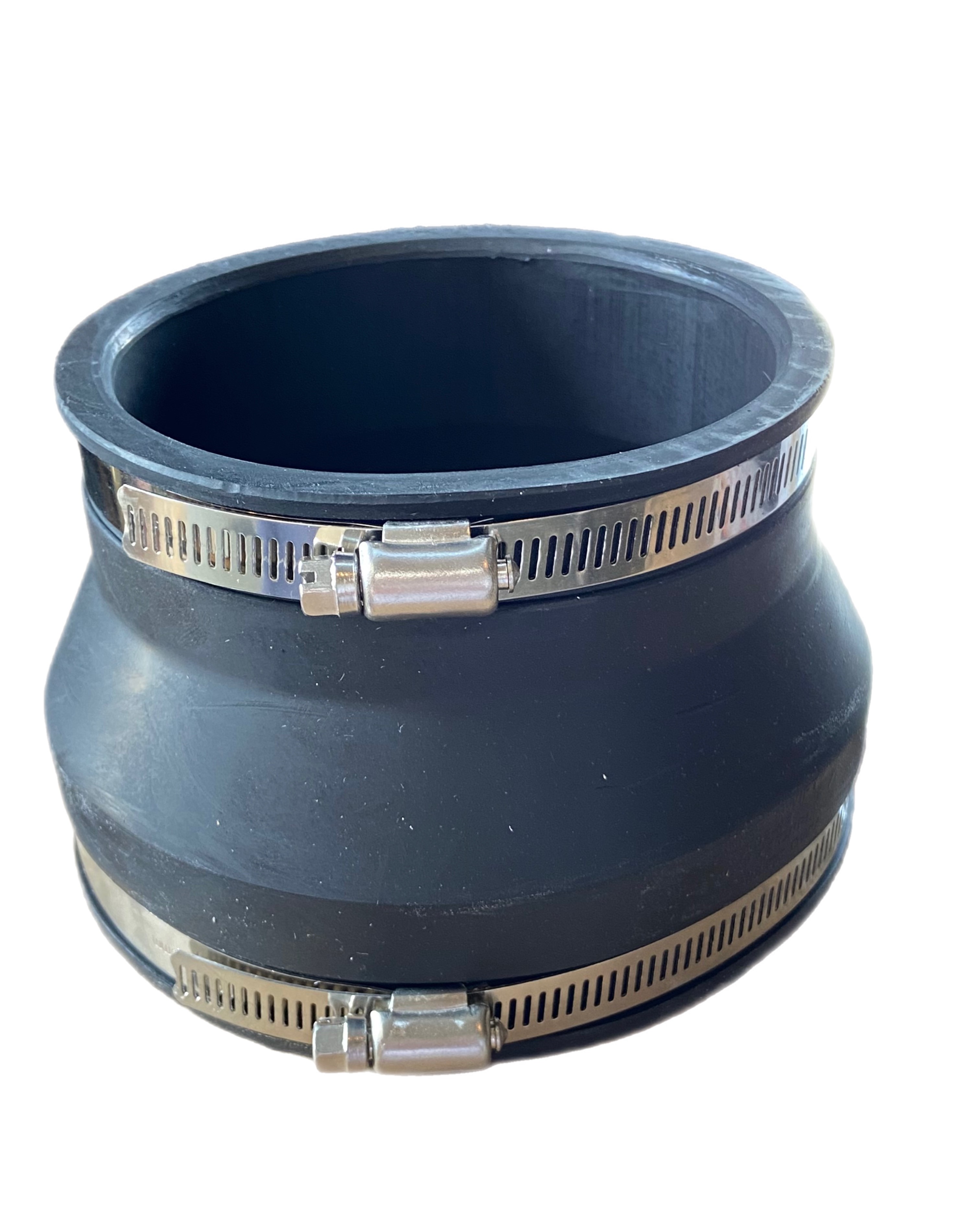

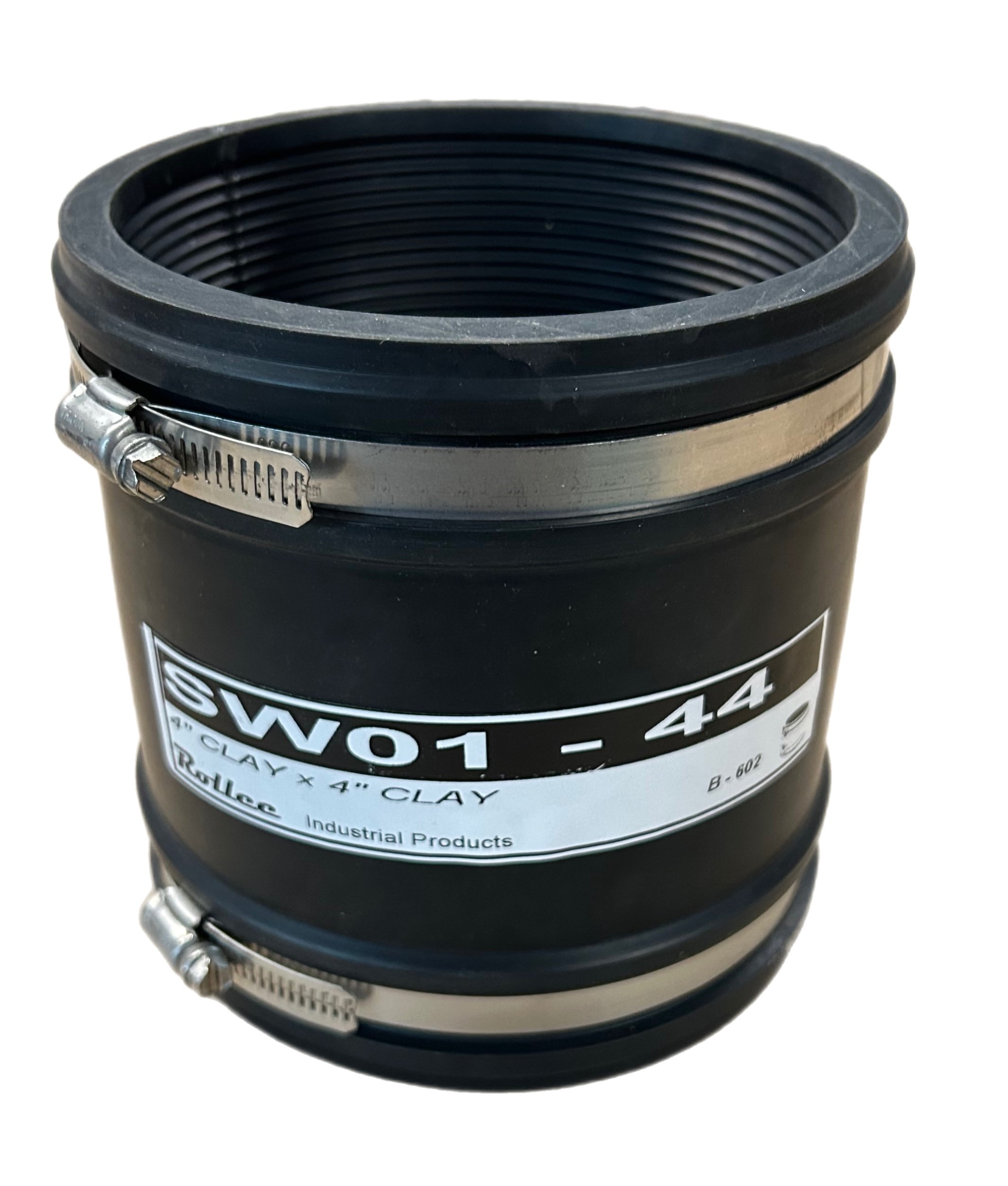

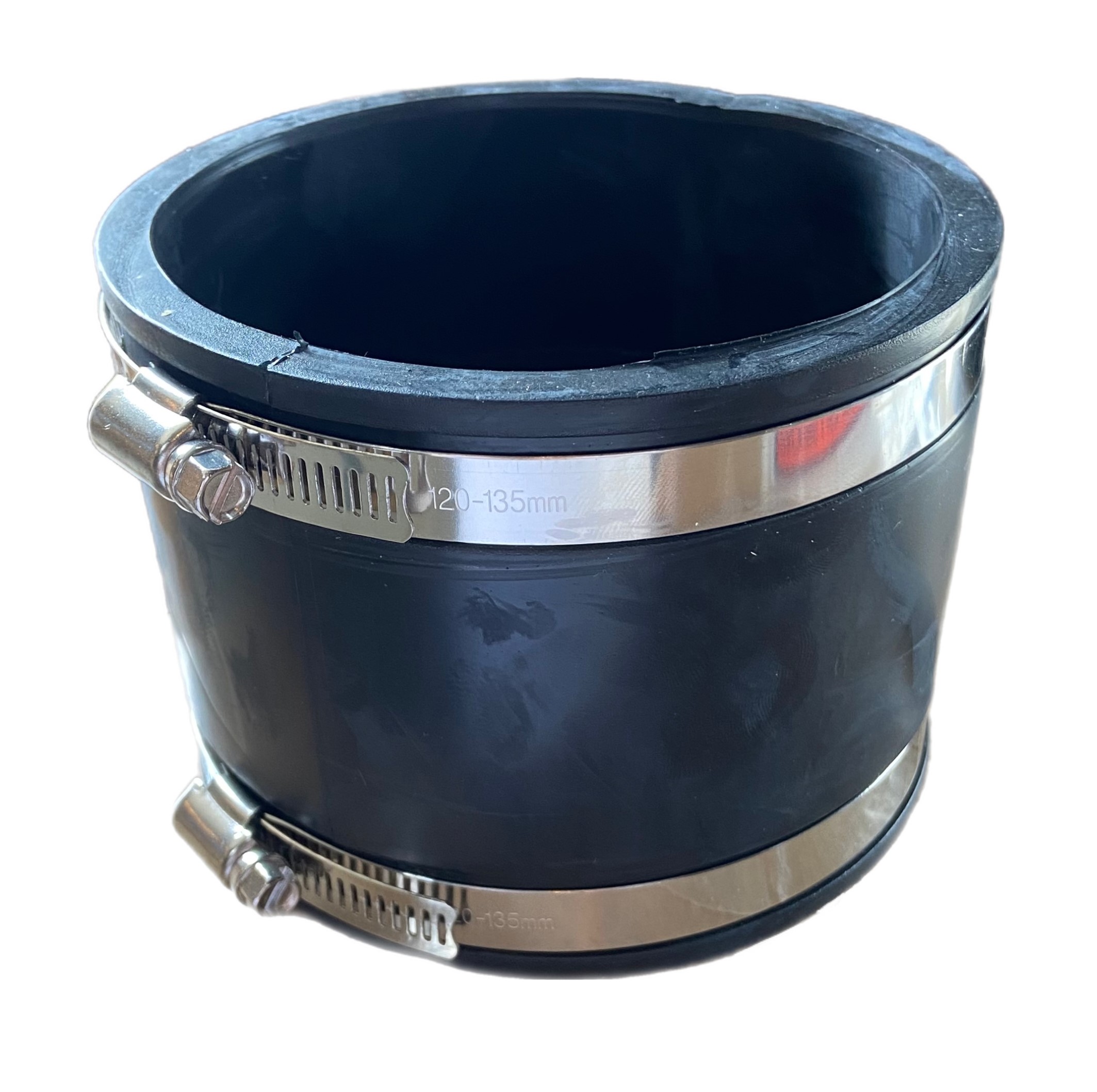

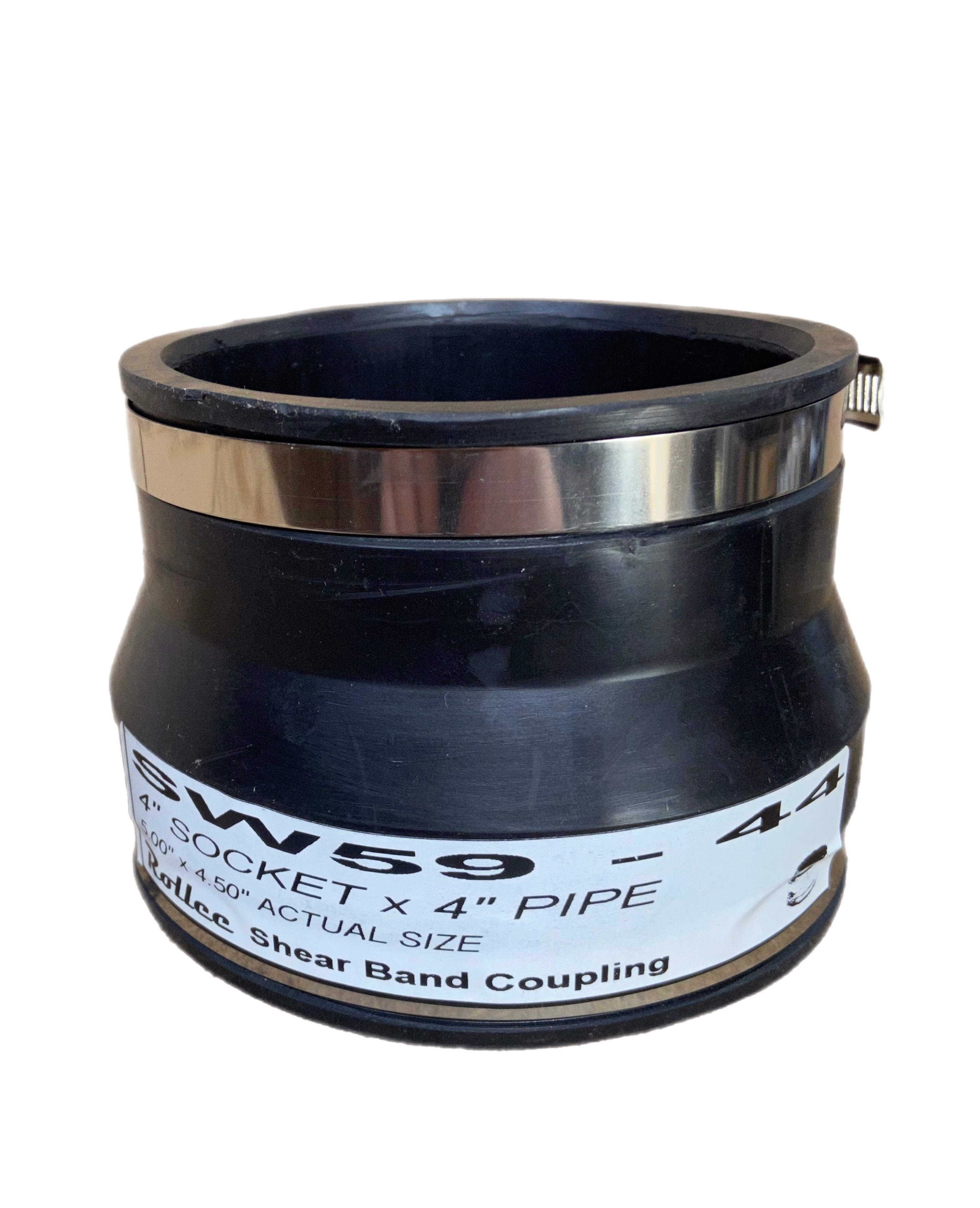

Swift Couplings are produced by Rollee Industrial Products primarily for the plumbing industry. They are a product made basically of high quality rubber and stainless steel clamps.
Swift couplings are also a transition coupling capable of adapting to many types and sizes of pipes.
Swift couplings have a flexibility at each joint of approximately 5 degrees off centre and are CSA approved.
We have designed the "SWIFT" coupling with the following features:
1. Ease of assembly - tapered mouth of coupling allows easy entry of piping.
2. Multi purpose use as each size adapts to many types of pipes: plastic, cast iron, steel, copper, brass and glass.
SWIFT couplings are manufactured to CSA specifications.
We Feature:
- Competitive Pricing
- Fast delivery service.
|
1. Rollee Flexible Couplings can be used to couple pipe when there is a break, or an inseretion is needed |

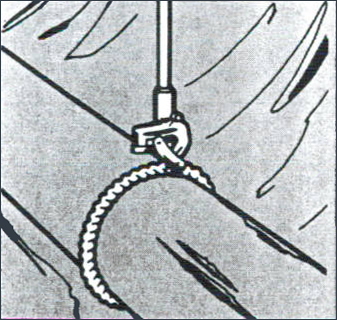

2. Remove pipe sections, then slide Flexible Couplings over both pipe ends. (Remove damaged areas if broken) |
|

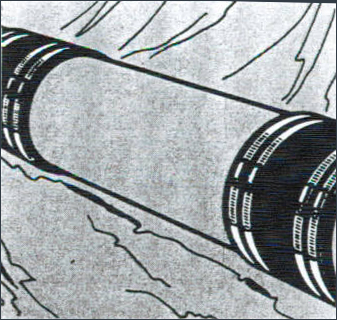

3. Insert new pipe or fittingthen slide Flexible Couplings over new and old pipe ends. |
4. Tighten clamps* to 60 inch-lbs. torque. Bed and backfill properly |
|

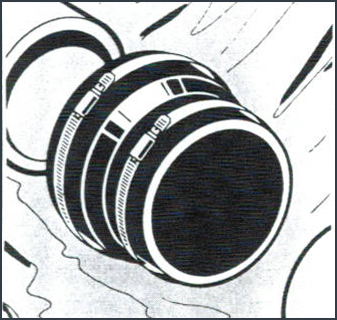

1. Loosen the stainless steel clamps. |

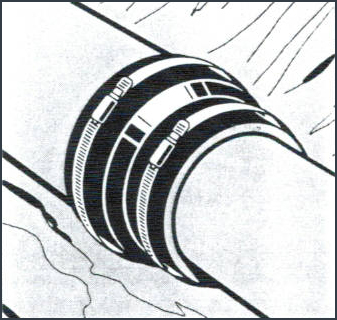

2. Slide Flexible Coupling over plain spigot ends of the two pipes. |
|

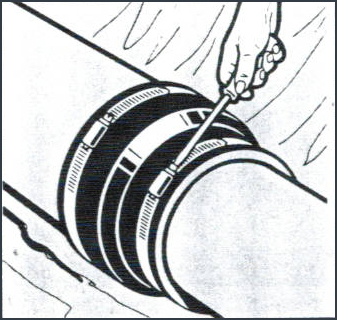

3. Tighten clamps to 60 inch-lbs. torque |

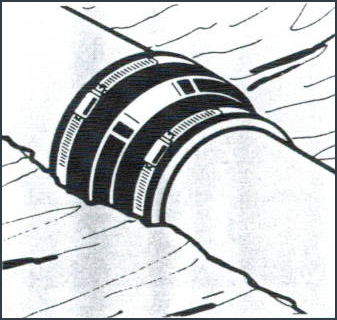

4. Pressure test before backfilling or concealing joint. Bed and backfill properly |
|
1. Loosen the stainless steel clamps. |

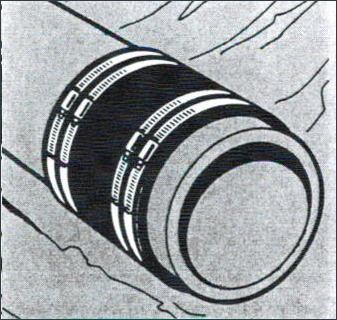

2. Slide Flexible Coupling over plain spigot ends of the two pipes. |
|
3. Tighten clamps to 60 inch-lbs. torque |

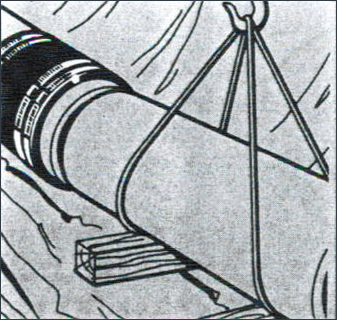

4. Support pipe and pressure test before concealing joint. |
